□ 优异的电光特性
□ 高消光比
□ 高损伤阈值
□ 高透过率
□ 高重频
□ 低吸收
□ 最小压电效应
□ 陶瓷片保护
□ 抗潮解
□ 紧凑设计
□ 易于调节

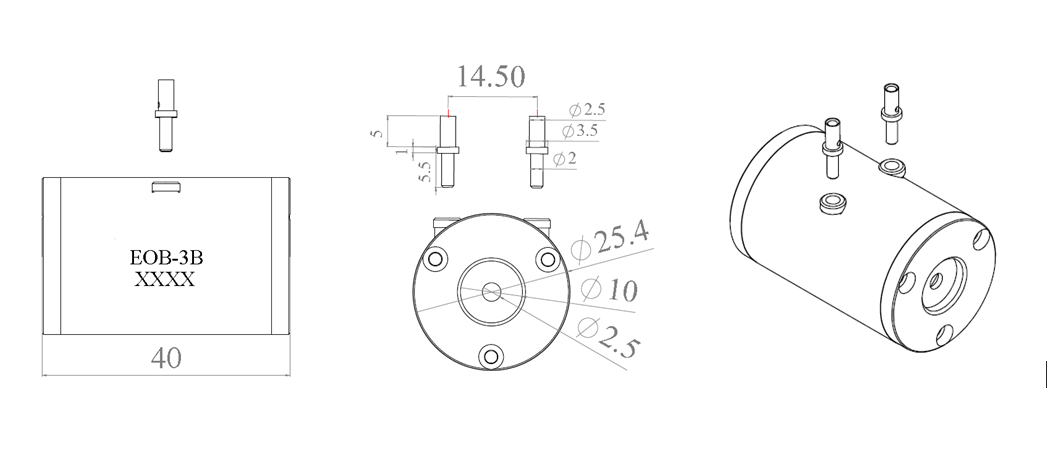

[EOB-3B]
型号/ Type
EOB-3B
外部尺寸/ External Dimension
Ф25.4×40mm
通光孔径/ Clear Aperture
Ф2.5mm
> 98%
静态消光比/ Static Extinction
Ratio@1064nm
> 1000:1
λ/4电压/ λ/4
Voltage@1064nm
2600V
电容/Capacitance
3.5pF
抗光伤阈值/ Laser Induced Damage
Threshold
500MW/cm²@1064nm,10ns,10Hz

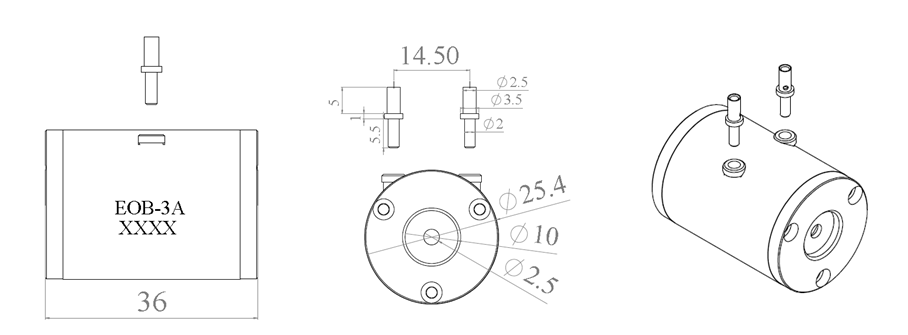

[EOB-3A]
|
型号/ Type |
EOB-3A |
|
外部尺寸/ External Dimension |
Ф25.4×36mm |
|
通光孔径/ Clear Aperture |
Ф2.5mm |
|
> 98% |
|
|
静态消光比/ Static Extinction Ratio@1064nm |
> 1000:1 |
|
λ/4电压/ λ/4 Voltage@1064nm |
3250V |
|
电容/Capacitance |
3.0pF |
|
抗光伤阈值/ Laser Induced Damage Threshold |
500MW/cm²@1064nm,10ns,10Hz |

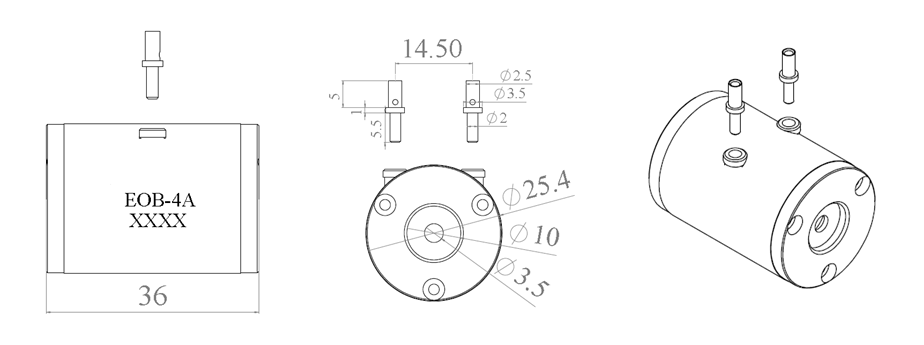

[EOB-4A]
型号/ Type
EOB-4A
外部尺寸/ External Dimension
Ф25.4×36mm
通光孔径/ Clear Aperture
Ф3.5mm
> 98%
静态消光比/ Static Extinction
Ratio@1064nm
> 1000:1
λ/4电压/ λ/4
Voltage@1064nm
4350V
电容/Capacitance
3.0pF
抗光伤阈值/ Laser Induced Damage
Threshold
500MW/cm²@1064nm,10ns,10Hz

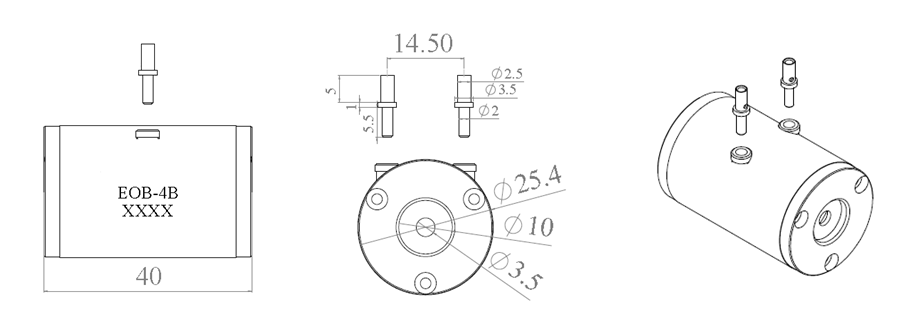

[EOB-4B]
|
型号/ Type |
EOB-4B |
|
外部尺寸/ External Dimension |
Ф25.4×40mm |
|
通光孔径/ Clear Aperture |
Ф3.5mm |
|
> 98% |
|
|
静态消光比/ Static Extinction Ratio@1064nm |
> 1000:1 |
|
λ/4电压/ λ/4 Voltage@1064nm |
3500V |
|
电容/Capacitance |
3.5pF |
|
抗光伤阈值/ Laser Induced Damage Threshold |
500MW/cm²@1064nm,10ns,10Hz |

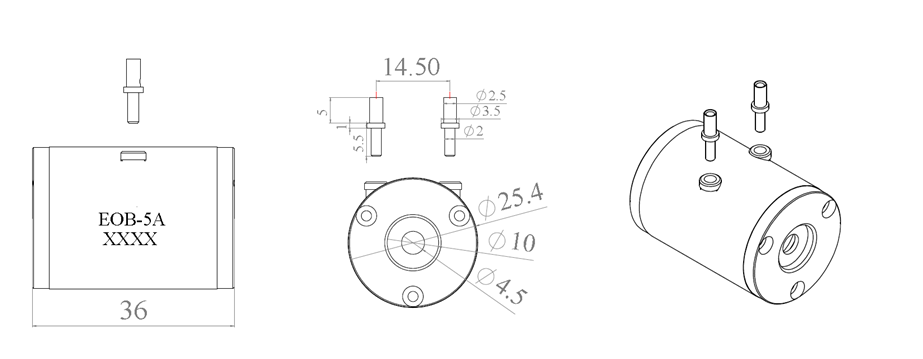

[EOB-5A]
|
型号/ Type |
EOB-5A |
|
外部尺寸/ External Dimension |
Ф25.4×36mm |
|
通光孔径/ Clear Aperture |
Ф4.5mm |
|
> 98% |
|
|
静态消光比/ Static Extinction Ratio@1064nm |
> 1000:1 |
|
λ/4电压/ λ/4 Voltage@1064nm |
5500V |
|
电容/Capacitance |
3.0pF |
|
抗光伤阈值/ Laser Induced Damage Threshold |
500MW/cm²@1064nm,10ns,10Hz |

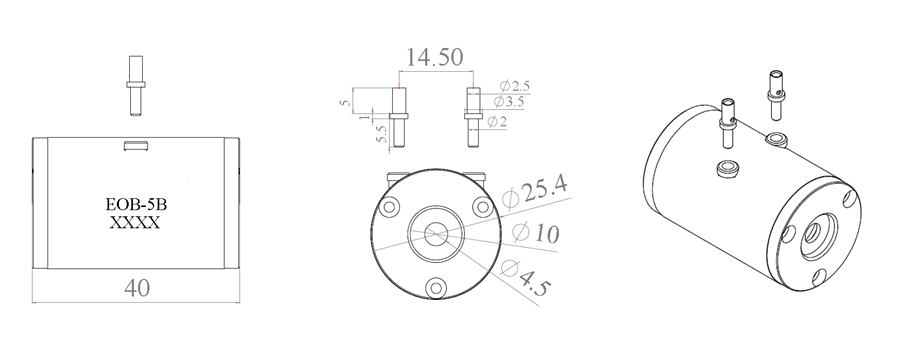

[EOB-5B]
|
型号/ Type |
EOB-5B |
|
外部尺寸/ External Dimension |
Ф25.4×40mm |
|
通光孔径/ Clear Aperture |
Ф4.5mm |
|
> 98% |
|
|
静态消光比/ Static Extinction Ratio@1064nm |
> 1000:1 |
|
λ/4电压/ λ/4 Voltage@1064nm |
4400V |
|
电容/Capacitance |
3.5pF |
|
抗光伤阈值/ Laser Induced Damage Threshold |
500MW/cm²@1064nm,10ns,10Hz |
