技术指标 |
|
|
材料 |
A级BK7 |
|
尺寸公差 |
+0.0,-0.2mm |
|
通光口径 |
>80% |
|
角精度 |
180°+/- 3 arc seconds |
|
面形 |
λ/4 on big surface, λ/10 on Other Surfaces |
|
光洁度 |
60/40 scratch/dig |
|
透过波前 |
λ/2@633nm |
|
崩边 |
0.2mm to 0.5mm |
|
镀膜 |
不镀膜 |
|

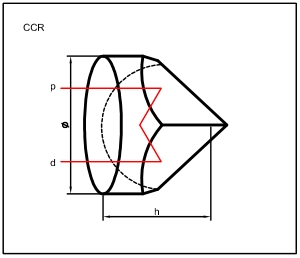

Part No. |
尺寸φ(mm) |
高度H(mm) |
|
CCR1101 |
15 |
11.3 |
|
CCR1102 |
25.4 |
19 |
|
CCR1103 |
38.1 |
29.2 |
|
CCR1104 |
50.8 |
38.1 |
|
技术指标 |
|
|
材料 |
A级BK7 |
|
尺寸公差 |
+0.0,-0.2mm |
|
通光口径 |
>80% |
|
角精度 |
180°+/- 3 arc seconds |
|
面形 |
λ/4 on big surface, λ/10 on Other Surfaces |
|
光洁度 |
60/40 scratch/dig |
|
透过波前 |
λ/2@633nm |
|
崩边 |
0.2mm to 0.5mm |
|
镀膜 |
不镀膜 |
|
Part No. |
尺寸φ(mm) |
高度H(mm) |
|
CCR1101 |
15 |
11.3 |
|
CCR1102 |
25.4 |
19 |
|
CCR1103 |
38.1 |
29.2 |
|
CCR1104 |
50.8 |
38.1 |
